A new Sales Order can be created using a Template Item. This section provides values for a Sales Order created using a Template Item.
Process Context
The following table provides the Process Context details for the example sales order template item:
|
Field |
Value |
|---|---|
|
Name |
Any friendly name |
|
Process integration |
Name of Microsoft Dynamics 365 BC Process integration |
|
Entity |
36 |
Process Map
The following details are added to the Process Map.
Sales Order Header - 36
The following table provides the template Sales Order header details:
|
Field |
Value |
|---|---|
|
Name |
Sales Order Header |
|
Process integration |
Name of Microsoft Dynamics 365 BC Process integration |
|
Entity |
36 |
|
Template |
|
|
Option Link Property |
|
The following table provides the template with Sales Order Lines Mapping details:
|
Name |
Field |
Data Type |
Mapping Type |
Value |
|---|---|---|---|---|
|
Document Type |
1 |
String |
Property |
|
|
No |
3 |
String |
Property |
|
Sales Order Line - 37
The following table provides the template Sales Order line headers details:
|
Field |
Value |
|---|---|
|
Name |
Sales Order Line |
|
Process integration |
Name of Microsoft Dynamics 365 BC Process integration |
|
Entity |
37 |
|
Template |
|
|
Option Link Property |
|
The following table provides the template Sales Order Lines Mapping details:
|
Name |
Field |
Data Type |
Mapping Type |
Value |
|---|---|---|---|---|
|
Document Type |
1 |
String |
Property |
|
|
Document No |
3 |
String |
Property |
|
|
Line No |
4 |
Integer |
Number Series |
Auto |
|
Type |
5 |
String |
Constant |
Item |
|
No |
6 |
String |
Constant |
1 |
|
Quantity |
15 |
Decimal |
Property |
Quantity |
|
Unit Price |
22 |
Decimal |
Property |
Price |
The Name 'No' in the Sales Order Lines Mapping is a workaround to put a constant value of 1 in the document. Microsoft Dynamics 365 BC requires field '6' or 'No' to be validated; therefore it needs to be included in the Process Map. This will be resolved in a future release so that it is done automatically.
Item - 27
The following table provides the template headers details:
|
Field |
Value |
|---|---|
|
Name |
Item |
|
Process integration |
Name of Microsoft Dynamics 365 BC Process integration |
|
Entity |
27 |
|
Template |
1896 - S Replace this value with an existing item number in the Microsoft Dynamics 365 BC database with the correct unit of measure, tax group, etc. |
|
Option Link Property |
Description |
The following table provides the template Lines Mapping details:
|
Name |
Field |
Data Type |
Mapping Type |
Value |
|---|---|---|---|---|
|
No. |
1 |
String |
NumberSeries |
ITEM |
|
Description |
3 |
String |
Property |
Description |
Production BOM header - 99000771
The following table provides the template header details:
|
Field |
Value |
|---|---|
|
Name |
Item |
|
Process integration |
Name of Microsoft Dynamics 365 BC Process integration |
|
Entity |
99000771 |
|
Template |
|
|
Option Link Property |
|
The following table provides the template lines mapping details:
|
Name |
Field |
Data Type |
Mapping Type |
Value |
|---|---|---|---|---|
|
No |
1 |
String |
NumberSeries |
PRODBOM |
|
Description |
10 |
String |
Property |
Description |
|
Status |
45 |
String |
Constant |
Certified |
|
Unit of Measure Code |
21 |
String |
Constant |
PCS |
Production BOM line - 99000772
The following table provides the template header details:
|
Field |
Value |
|---|---|
|
Name |
Item |
|
Process integration |
Name of Microsoft Dynamics 365 BC Process integration |
|
Entity |
99000772 |
|
Template |
|
|
Option Link Property |
|
The following table provides the template lines mapping details:
|
Name |
Field |
Data Type |
Mapping Type |
Value |
|---|---|---|---|---|
|
Production BOM No |
1 |
String |
Property |
|
|
Version Code |
3 |
String |
Property |
|
|
Line No. |
2 |
Integer |
NumberSeries |
Auto |
|
Type |
10 |
String |
Constant |
Item |
|
No |
11 |
String |
Property |
ERP_ItemNo |
|
Quantity Per |
45 |
Decimal |
Property |
Quantity |
Routing header - 99000763
The following table provides the template header details:
|
Field |
Value |
|---|---|
|
Name |
Item |
|
Process integration |
Name of Microsoft Dynamics 365 BC Process integration |
|
Entity |
99000763 |
|
Template |
|
|
Option Link Property |
|
The following table provides the template lines mapping details:
|
Name |
Field |
Data Type |
Mapping Type |
Value |
|---|---|---|---|---|
|
No |
1 |
String |
NumberSeries |
ROUTING |
|
Type |
21 |
String |
Constant |
Parallel |
|
Status |
20 |
String |
Constant |
Certified |
|
Description |
2 |
String |
Property |
Description |
Routing line - 99000764
The following table provides the template header details:
|
Field |
Value |
|---|---|
|
Name |
Item |
|
Process integration |
Name of Microsoft Dynamics 365 BC Process integration |
|
Entity |
99000764 |
|
Template |
|
|
Option Link Property |
|
The following table provides the template lines mapping details:
|
Name |
Field |
Data type |
Mapping type |
Value |
|---|---|---|---|---|
|
Routing No |
1 |
String |
Property |
|
|
Version Code |
2 |
String |
Property |
|
|
Operation No |
4 |
String |
NumberSeries |
auto |
|
No |
8 |
String |
Property |
ERP_ItemNo |
|
Setup Time |
12 |
Decimal |
Property |
ERP_SetupTime |
|
Run Time |
13 |
Decimal |
Property |
ERP_MachineTime |
Item Attribute - 7505
The following table provides the template headers details:
|
Field |
Value |
|---|---|
|
Name |
Item |
|
Process integration |
Name of Microsoft Dynamics 365 BC Process integration |
|
Entity |
7505 |
|
Template |
|
|
Option Link Property |
|
The following table provides the template Lines Mapping details:
|
Name |
Field |
Data Type |
Mapping Type |
Value |
|---|---|---|---|---|
|
Table ID |
1 |
String |
Key |
|
|
No. |
2 |
String |
Key |
|
|
Item Attribute ID |
3 |
String |
Constant |
Color |
|
Item Attribute Value |
4 |
String |
Property |
NewPurpule |
Process Structure

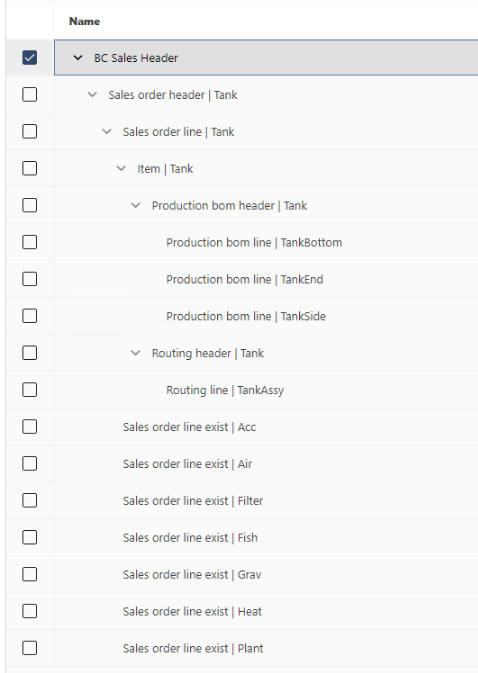

The following image displays the process structure in Process Designer:
The following diagram displays the setup of the process structure for the Aquarium demo database.
